Based on the sophisticated hardware acceleration techniques and point cloud
acquisition algorithms, the RVC X 3D camera provides point clouds with ultra-high accuracy and fast
speed. In the high-accuracy mode, the typical measurement accuracy is 0.01 mm for a working distance
of 1 m, and it can reach a 3D-imaging speed of 5 frames per second. The speed can be further
increased to 15 frames per second with reduced accuracy.
*Specification of RVC X 3D Camera
RVC X provides high-quality point clouds for objects with different size, colors

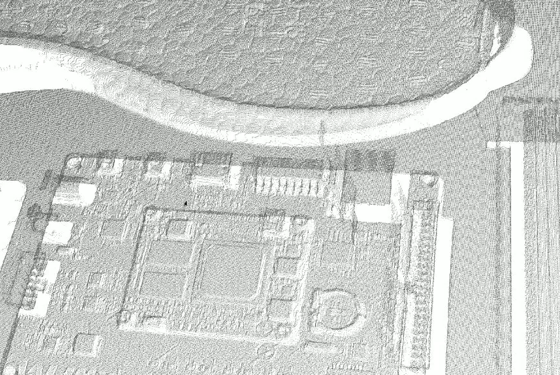

* 3D point clouds of a variety of materials

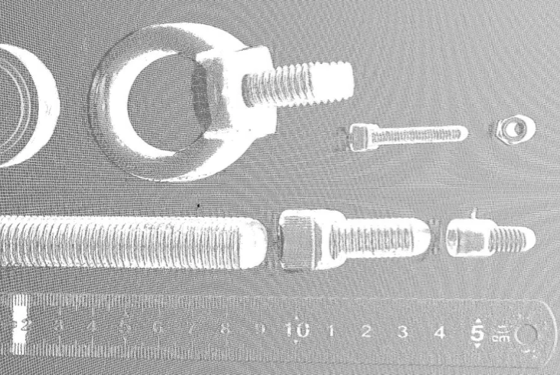

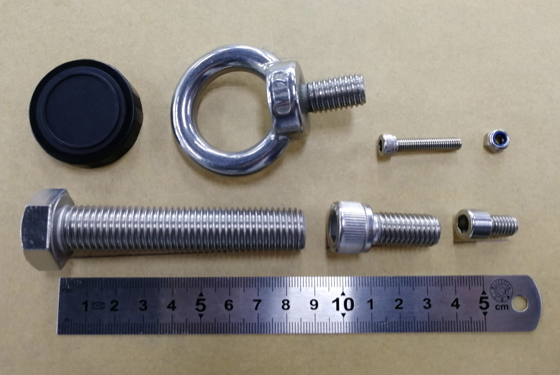

* 3D point-cloud acquisition of metallic objects
RVC SDK supports Windows and Linux (Debian/Ubuntu) operating systems. It also
provides native supports for C++, Python, and C# programming languages. In order to make the SDK
easy to use for developers, RVC SDK provides rich sample codes. In addition, RVBUST provides
customers with prompt services on technical support and convenient online technical discussion
The modular structure allows a single RVC X to possess the capabilities of
multiple 3D cameras in terms of working distance and field of view,
which is achieved through using different numbers of component cameras and various lenses as well as
different geometric configurations of system components.

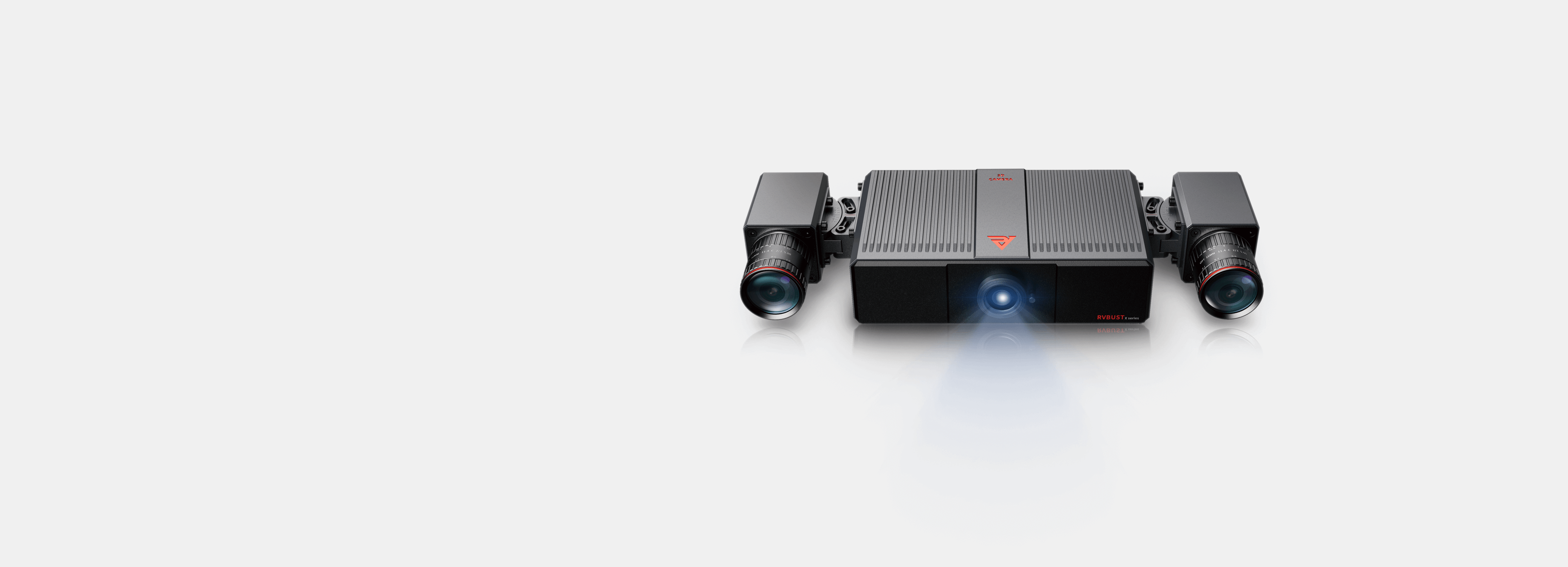

RVC X uses advanced miniature components, which give it a compact structure and
elegant exterior appearance.
Its dimension of 300mm X 110mm X 50mm is one of the smallest industrial 3D cameras on the
Point cloud for dimensional inspection of castings
Capturing point cloud of steel plates
Point cloud for flatness inspection of cement blocks
Capturing point cloud of characters on metal parts
